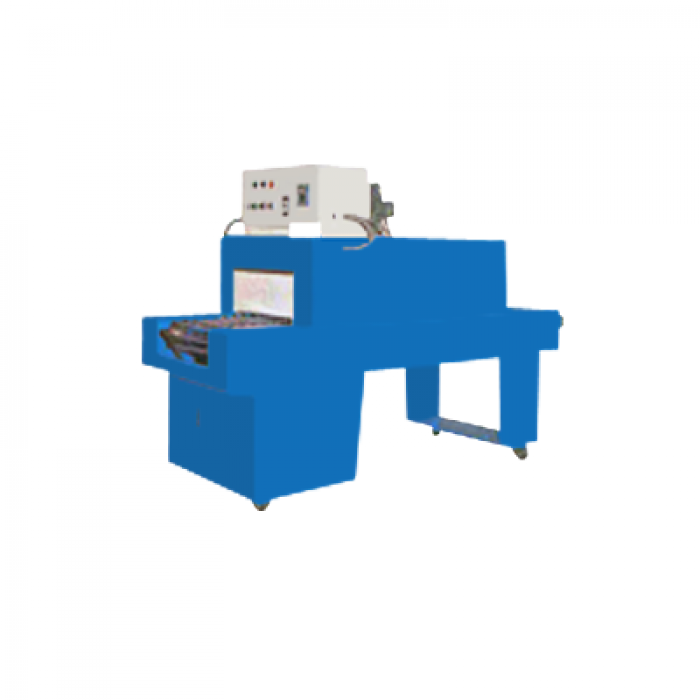

熱風收縮機

※ 商品編(型)號:GS系列
※ 產品規格:可適用PVC、PP、POF各種熱收縮膜

產品詳細資訊

型            號    MODEL  GS-4020L
 最大包裝尺寸   MAX PACKING SIZE  1200X400X200 mm
 機  械  尺  寸    MACHINE DIMENSION
                        ( L x W x H mm)
 2000X760X1450 mm
 電            源    POWER SOURCE  3Ø220V、3Ø440V



 型                MODEL  GS-6030L
 最大包裝尺寸   MAX PACKING SIZE  1200X600X300 mm
 機  械  尺  寸    MACHINE DIMENSION
                        ( L x W x H mm)
 2000X960X1550 mm
 電                POWER SOURCE  3Ø380V440V


備註:包裝尺寸及機械尺寸為參考用,需視包裝物尺寸而定。


特性

  • 可適用PVC、PP、POF各種熱收縮膜。
  • 輸送帶可依產品規格,訂製滾輪式或網狀式。
  • 堅固耐用,溫度控制穩定,輸送帶速度為變頻器控制。



FEATURES

  • Applicable PVC, various kinds of hot shrink membrane of PP , POF.
  • The conveyer belt can depend on the product specification , order the gyro wheel type or netted type.
  • Sturdy and duable, temperature control is steady, the speed of the conveyer belt is controlled for the frequency converter.



由於本公司不斷的研究改進,本型錄所示之機械規格、設計特性,本公司有變更之權力,恕不另行通知。
All specifications,design and characteristics shown on this catalogue are subject to change without prior notice.
