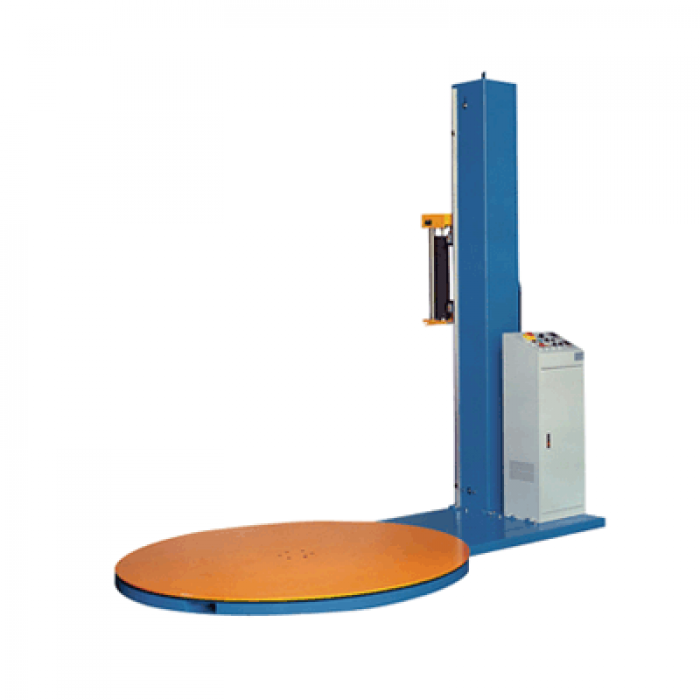

※ 商品編(型)號:PH-1821
※ 產品規格:轉盤直徑:1800mm 裹膜高度(含棧板):2100mm
型錄下載
※ 產品規格:轉盤直徑:1800mm 裹膜高度(含棧板):2100mm
產品詳細資訊
型 號 MODEL | PH-1821 |
轉 盤 直 徑 TURNTABLE DIAMETER | 1800 mm |
裹 膜 高 度 WRAPPING HIGHT ( 含棧板 ) ( including pallet ) |
2100 mm |
荷 重 LOADING WEIGHT | Max.2000kgs (4400lbs) |
電 源 POWER SOURCE | Single phase or 3 phase 220V,380V,415V,440V(50,60Hz) |
耗 電 量 POWER CONSUMPTION | 電磁式 Electrical magnetic brake 1.3KW 轉盤馬達 Turntable motor 1HP 立柱馬達 Film carriage motor 1/2HP |
耗 電 量 POWER CONSUMPTION | 預拉式Power Pre-stretch system 1.7KW 轉盤馬達 Turntable motor 1HP 立柱馬達 Film carriage motor 1/2HP 預拉馬達 Pre-stretch motor 1/2HP |
裹 膜 主 機 FILM CARRIAGE SPEED | 電磁式(可調) Electrical magnetic brake(Adjustable) 選擇配件 Option: 預拉式 Power pre-stretch system |
轉 盤 速 度 TURNTABLE SPEED | 5~15 RPM(可調 Adjustable) |
裹膜上升下降速度 FILM CARRIAGE SPEED | 5米/每分鐘(可調) 5M/per min.(Adjustable) |
PE膜規格 FILM SPEC. | 內徑 Film reel core dia.: 76mm 最大外徑 Film reel outside dia.: Max.350mm 寬度 Width: 500mm |
PE膜厚度 FILM THICKNESS | 17~35 microns |
包 裝 尺 寸 PACKING SIZE ( L x W x H ) | 2970 x 1630 x 810 mm |
特性
- 採用PLC程式控制,具專業模組化設計。
- 變頻器控制馬達速度,可使裹膜的動作與轉速完美配合。
- 主機膜座以鏈條傳動,上下膜座平穩順暢。(速度可調整)
- 轉盤以鏈條傳動,荷重轉動,穩定可靠。(速度可調整)
- 搬運時,膜座柱可直接放倒,不用拆裝主機膜座,節省時間並防止安裝時,可能產生的疏失。
- 具手動 / 自動操作模式。
- 具和緩啟動 / 停止功能、裹包順暢,機器壽命長。
FEATURES
- Utilizes PLC control,equipped with standard organization of professional design.
- A frequency inverter controls the speed of the motor,so that the film wrapping and rotational speed can be perfectly matched.
- The film carriage is equipped with hinged drive,for smooth vertical movement.Speed is adjustable.
- Turntable is equipped with hinged drive, for stable turning during pallet loading.Speed is adjustable.
- When moving,the pillar can be directly put down.No need to take apart the film carriage.This saves time and prevents negligence when reinstalling.
- Manual or auto mode of operation.
- Soft start / stop and wrap smoothly so the machine life is long.
範例影片 / Video
OPTIONS選購配備
- Power pre-stretch system,PH-1521P
(50%,100%,150%,200%)預拉式主機(如圖一,Fig-1) - Top press plate,PH-1521+P上壓板(如圖二,Fig-2)
- Access ramp 斜板(如圖三,Fig-3)
- Extra wrapping protection for the middle when stacking two pallets together.
(兩棧板上下堆疊時,中間部分補強裹膜)
↑ 圖一(Fig-1)
↑ 圖二(Fig-2)
Other spec is on request 尺寸依不同需要另行訂做。
↑ 圖三(Fig-3)
